Five XGBoost tyre prediction models and their metrics

Degradation quantile trio, cliff classifier, and stint-life regressor five XGBoost models, every one beating a per-cohort baseline, with full metrics.

Features & Targets

The 33-feature input matrix, encoding, the three targets, and the dataset fingerprint.

Tuning

The 9-dimensional Optuna search, CV selection, and full refit.

Off The Pace trains five XGBoost models on the same per-lap feature matrix and holds every one to the same standard: beat a strong, honest per-cohort baseline not just chance. All five pass that gate, and the numbers below are the proof.

The shipped parameters come from the canonical make ml-tune search (50+ trials, season folds, full data), stored per target in ml/models/<target>_best_params.json. make ml-retrain refits at those parameters without re-searching, which is how a mart change ships without paying for a fresh search. A target whose data has moved should eventually be re-tuned, not only refit.

Headline results

Model	Kind	Metric	CV	Eval (2024)	Baseline	Beats
degradation_regressor_p10	quantile	pinball	0.6042	0.5320	1.4644	✅
degradation_regressor_p50	quantile	pinball	1.1708	1.0468	2.1777	✅
degradation_regressor_p90	quantile	pinball	0.6434	0.5785	0.8908	✅
cliff_classifier	classification	macro_f1	0.3717	0.3719	0.2187	✅
stint_life_regressor	survival	aft_nloglik	2.1481	1.9878	2.1869	✅

CV is the season-grouped TimeSeriesSplit mean across five folds. Eval is the final fold (2024), standing in as a holdout until 2025 data ingests. See Validation for the full CV scheme and the per-cohort baselines. For individual model hyperparameters and per-cohort breakdowns, see the Model Reference.

---

How the models learn

All five models are gradient-boosted decision-tree ensembles (XGBoost). A prediction is an additive sum of $K$ regression trees, built greedily one residual-correcting tree at a time:

$\hat{y}_i = \sum_{k=1}^{K} f_k(x_i), \qquad f_k \in \mathcal{F}$

where $\mathcal{F}$ is the space of CART trees and $K$ is n_estimators. Training minimises a regularised objective that trades goodness-of-fit against tree complexity:

$\mathcal{L} = \sum_i \ell\!\left(y_i,\, \hat{y}_i\right) \;+\; \sum_{k=1}^{K}\Omega(f_k), \qquad \Omega(f) = \gamma\,T \;+\; \tfrac{1}{2}\lambda\lVert w\rVert^2 \;+\; \alpha\lVert w\rVert_1$

$T$ is a tree’s leaf count and $w$ its leaf weights. The three regularisation strengths map directly to the tuned hyperparameters in the model card: $\gamma$ = gamma (minimum split-loss), $\lambda$ = reg_lambda (L2), $\alpha$ = reg_alpha (L1). The only thing that differs between the five models is the per-row loss $\ell$ the objective function below.

---

Objective functions

Pinball loss (the quantile trio)

The three degradation regressors minimise the pinball (quantile) loss at $\alpha \in \{0.1,\, 0.5,\, 0.9\}$ (reg:quantileerror). For a residual $u = y - \hat{y}$:

$\ell_\alpha(y, \hat{y}) = \max\!\big(\alpha\,u,\;(\alpha-1)\,u\big) = \begin{cases} \alpha\,u & u \ge 0 \\[2pt] (\alpha-1)\,u & u < 0 \end{cases}$

The asymmetry is the entire mechanism. At $\alpha = 0.9$ an under-prediction ($u>0$) is penalised nine times harder than an over-prediction, so the fitted surface is pushed up to the 90th percentile; at $\alpha = 0.1$ the penalty flips and the surface settles at the 10th. At $\alpha = 0.5$ the loss is symmetric and reduces to mean absolute error, recovering the median. This is why $\alpha=0.1$ gives the optimistic bound, $\alpha=0.9$ the pessimistic one, and the three together form the $[p_{10}, p_{90}]$ interval.

Censored AFT likelihood (stint life)

The stint-life model is a survival fit, not a regression. 46.2% of its training rows are right-censored: on a driver’s last stint of a race the tyre is still on the car when the flag falls, so the life we observe is a lower bound, not the life the tyre had. Squared error against that bound trains the model to predict when the pit wall stopped, which is not the question.

It therefore minimises the accelerated-failure-time negative log-likelihood (survival:aft) over an interval label, fitting $\log(y + 1) \sim \mathcal{N}(\mu, \sigma)$ so that $y+1$ is log-normal:

$\ell(y,\mu) = \begin{cases} -\log \phi\!\left(\tfrac{\log t - \mu}{\sigma}\right) + \log(t\sigma) & \text{uncensored, } t = y+1 \\[4pt] -\log\!\left[1 - \Phi\!\left(\tfrac{\log t - \mu}{\sigma}\right)\right] & \text{censored} \end{cases}$

The two branches are the whole mechanism. An uncensored row is scored on the density at the life we saw; a censored row is scored on the survival function, the probability of lasting at least that long. Predicting more life than we observed is nearly free on a censored row and expensive on an uncensored one, which is exactly the asymmetry the data has.

The $+1$ shift exists because $\log 0$ is $-\infty$ and 2,264 training rows have zero remaining life 2,236 of them (98.8%) censored, i.e. final laps of final stints. It is subtracted back at prediction time.

The fitted scale $\sigma = 0.8$ was swept at the production hyperparameters (CV NLL 2.237 at $\sigma=0.5$, 2.0905 at $\sigma=0.8$, 2.115 at $\sigma=1.0$ an interior optimum). Because the fit is log-normal, that one number yields the whole distribution: the median is $e^{\mu}$ and any percentile is $e^{\mu + \sigma \Phi^{-1}(q)}$, which is what lets the app render a $[p_{10}, p_{90}]$ band from a single model output.

Predictions are clipped at $\ge 0$: a stint cannot have a negative number of laps remaining.

Stint life is never reported as a pooled RMSE. Scoring only the uncensored stints measures the pit wall’s selection rather than the model an artefact that once produced an apparent “+12.4% improvement” from simply discarding censored rows. The headline is the censored NLL, with the C-index beside it and the two populations reported separately.

Softprob with balanced class weights (the cliff classifier)

The cliff classifier minimises multiclass cross-entropy over a softmax (multi:softprob) across the four laps_until_cliff_class buckets. Because the classes are imbalanced (≈76% none_in_stint), each row is weighted inversely to its class frequency sklearn’s balanced scheme:

$w_c = \frac{n}{C \cdot n_c}$

for a class $c$ with $n_c$ members, $C = 4$ classes, and $n$ rows in total. A rare 0_to_2 lap therefore carries several times the gradient of a common none_in_stint lap, which is what keeps the high-value imminent-cliff windows from being optimised away by the majority class.

Inverse-censoring survival weights (the quantile trio)

The quantile regressors carry one further weight on top of the loss: an inverse-probability-of-censoring (IPW) survival weight $w_i = 1 / \hat{S}(t_i)$, the reciprocal of the probability that stint $i$ survived (avoided being pitted) to its current lap $t_i$. Without it, the high-lap_in_stint tail is dominated by the durable stints that happened to run long, and the genuinely degraded stints that were pitted early are under-counted biasing the predicted degradation downward exactly where the cliff matters most.

---

Degradation quantile trio

The three quantile regressors share the pinball loss objective (reg:quantileerror) but target different quantiles of next_lap_degradation_jump_s the fuel-corrected pace change the next lap will show, measured in seconds.

What this tells you: the p50 model gives you the median expected pace loss next lap the single best guess at how much time this tyre will cost relative to its current pace. The p10 model is the optimistic bound: nine times out of ten, real pace loss will be worse than this. The p90 model is the pessimistic bound: nine times out of ten, real pace loss will be better than this. Together, [p10, p90] forms an 80% prediction interval that honestly brackets the next lap four times in five see Validation for the coverage numbers.

When to rely on it: the interval is most useful when you want to compare tyre risk between two stints or set a pit-window trigger. A narrow band means the tyre’s behaviour is predictable; a wide band flags genuine uncertainty.

Limits: the target is legitimately negative roughly 44% of the time a tyre coming into its working window, or recovering after an out-lap, genuinely gains pace. The model captures this, but intervals on the first two or three laps of a stint are wider as the tyre is still warming.

The quantile outputs are always monotone p10 ≤ p50 ≤ p90 so crossed intervals never reach the UI. Each regressor’s baseline is the honest naive answer in the same (compound, circuit, age-bucket) cells: the cell group-mean for p50, the empirical 10th/90th percentile for p10/p90. Beating a per-cell empirical percentile means the model adds real signal beyond “what usually happens here.”

---

Cliff classifier

The cliff classifier is a 4-class model over laps_until_cliff_class, trained with multi:softprob and balanced class weights to keep the rare imminent-cliff windows from being drowned out by none_in_stint, which carries roughly three quarters of all laps.

What this tells you: where the tyre sits relative to a cliff. The four classes map directly to how urgent the strategy call is:

Class	Meaning	Approx. share
0_to_2	Cliff imminent within the next two laps	~9%
3_to_5	Cliff approaching three to five laps away	~7%
6_plus	Cliff six or more laps away, but still inside this stint	~9%
none_in_stint	No crossing anywhere in the remaining stint	~76%

When to rely on it: use the classifier’s output as a yellow/amber/red alert for pit-stop timing, not as a lap-precise countdown. The probability scores for each class are surfaced a high probability on 0_to_2 is a stronger signal than a marginal one.

Limits read this. The model’s macro-F1 of 0.404 comfortably beats the majority-class prior (0.224), and the balanced weighting earns its keep on the minority imminent-cliff windows. It is still the model to be most careful with, but not for the reason this page used to give.

The old reading was “macro-F1 ≈ 0.40 is modest in absolute terms”. That compares 0.404 against 1.0, and 1.0 is not a score anything could reach on this label: laps inside a stint share a compound, a car, a circuit, a fuel load and a driver, so a large part of the class is fixed before the lap is run. Measured against an oracle that is handed the stint id and nothing else, the model reaches 114% of that ceiling it is not the ceiling that is holding it back. The real limit is upstream: laps_until_cliff_class is a first-crossing scan over a polynomial cliff curve that is unbounded, so part of what the model is being asked to reproduce is an artefact of the label’s construction rather than a fact about the tyre.

Treat 0_to_2 calls as a strong prompt to look at the degradation band, not a lap-precise certainty. The largest confident misses are reviewed continuously. See also Tyre cliff.

Why this is not a survival model

laps_until_cliff_class is also a censored time-to-event target. none_in_stint is just the censored bucket, and about a quarter of training rows have fewer than six laps left in the stint, so 6_plus is not even reachable for them. The obvious move is to fit one accelerated-failure-time model on the first-crossing lap and read the four class probabilities off the survival curve, preserving the 4-column output contract exactly. That framing is the right one for the stint-life target. Measured on this target, it loses.

Evaluated on rows with at least 15 laps left, where all four buckets are fully observed over a fixed horizon and nothing in the metric depends on when the team actually pitted:

Model	macro-F1 (higher better)	log-loss (lower better)
multiclass multi:softprob	0.3704	1.1503
AFT to bucket probabilities, scale 0.35	0.2918	2.5485
AFT to bucket probabilities, scale 0.7	0.3331	1.3009
AFT to bucket probabilities, scale 0.9	0.3329	1.1350
AFT to bucket probabilities, scale 2.0	0.2566	0.9593

The scale was swept rather than fixed at one value, so the result is a property of the framing and not of a badly chosen constant. The trade is legible: AFT buys better calibration at wide scales (log-loss 0.959 against 1.150) and worse discrimination everywhere. Macro-F1 never reaches the multiclass model, and at the log-loss optimum the AFT model has collapsed to predicting the base rate. Macro-F1 is this target’s headline metric, so the multiclass model keeps the slot. Measured 2026-08-23.

---

Stint-life regressor

The stint-life model predicts remaining_stint_life_laps a synthesised, non-negative count of usable laps remaining in the stint as an accelerated-failure-time survival fit (survival:aft, log-normal, clipped ≥ 0).

What this tells you: this is the number behind the strategy view’s “this set has approximately N laps left” readout. It integrates tyre age, thermal load, and compound character into a median, and because the fit is log-normal it also yields the $[p_{10}, p_{90}]$ band shown beside it.

When to rely on it: read the band, not the median alone. The gauge colours by $p_{10}$ rather than the median, because “how soon could this tyre be done” is the decision the colour is used for, and the pessimistic end is the honest answer to it. The estimate tightens as the stint progresses.

Why it is not an RMSE: almost half the training rows are censored, and a point error against a lower bound is not an error. The model is scored on the censored likelihood, with the C-index as the ranking check and the censored and uncensored populations reported apart. The blind-test scoreboard shows both columns and never averages them.

Limits: its baseline is knowingly near-oracle it uses the true final stint length the model is explicitly forbidden to see yet the model still wins under the censored likelihood. Cohort losses on specific circuits are recorded openly rather than dropped.

---

Tuning and refit

Each model is tuned with Optuna (TPESampler + MedianPruner, seeded), then refit on the full training set. Cross-validation selects the hyperparameters; the complete dataset trains the shipped booster. The 9-dimensional search space and the full Steps walkthrough live on the Tuning page.

---

ONNX export and in-browser scoring

Every model is exported to ONNX and passes a round-trip parity test to atol=1e-5 including a NaN-bearing sample that confirms parity holds on the ~47% of laps with a null cliff-onset prior. This export is what allows the React app to score predictions entirely client-side, with no server required. Full details on the ONNX page.

Worked example: reading a p10 / p50 / p90 interval

Suppose, on lap 14 of a stint, the trio outputs p10 = −0.05 s, p50 = +0.18 s, p90 = +0.61 s.

• The median call is “next lap costs ≈ 0.18 s of pace.”
• The 80% interval is [−0.05, +0.61] four times in five, the real next-lap change will land in that band.
• The interval is asymmetric and skewed positive the downside tail (+0.61) is wider than the upside (−0.05), which is the model saying the tyre is more likely to lurch slower than faster. That asymmetry is the early warning the cliff classifier then quantifies as a class.

A symmetric band tight around zero means a settled tyre; a band that fans out on the positive side is a tyre starting to ask questions.

Why gradient-boosted trees and not one regression?

The decomposition already runs the linear, physics-grounded corrections each one a single coefficient per dimension. The cliff is where that approach runs out: it is an interaction effect (“Soft and lap 14 and six laps of dirty air and a hot low-grip surface”), and a linear model would need every interaction term hand-specified. Boosted trees discover the interactions that matter from the data, which is precisely the job the linear layer cannot do. The trade is interpretability, recovered post-hoc via SHAP (see Model Reference → feature importance).

---

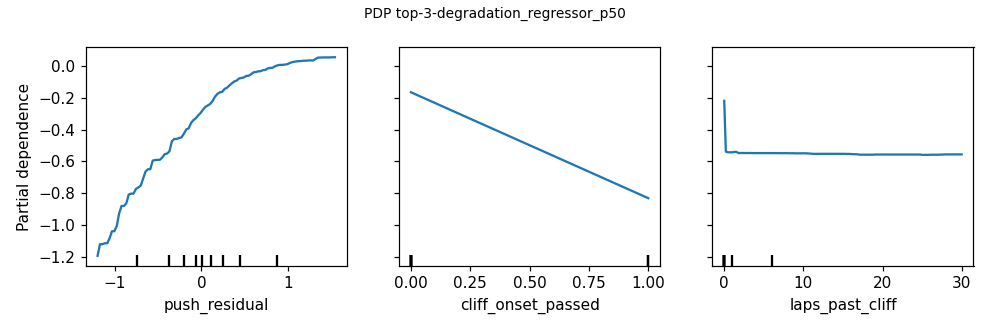

What the p50 regressor learned

A partial-dependence plot isolates how the median-degradation model’s output moves with each of its three most important features, holding the rest fixed the post-hoc interpretability the SHAP analysis quantifies.

• push_residual is the dominant, near-monotone driver: the harder a lap is pushed relative to its stint, the more the model expects the next lap to give back.
• cliff_onset_passed (a binary flag) and laps_past_cliff move the median once the tyre crosses its modelled cliff laps_past_cliff saturates almost immediately, consistent with the cliff being a step change rather than a gradual slope.

See the Model Reference for the full SHAP-vs-permutation importance ranking behind this selection.
